Abstract

Object detection is a key task in computer vision, traditionally dominated by complex models that rely on multi-step pipelines. DETR (Detection Transformer) introduces a groundbreaking approach by leveraging Transformer architecture, originally developed for natural language processing, to streamline object detection. This article explores the fundamentals of DETR, its advantages over conventional methods, and demonstrates its practical application through code examples and visualizations.

1. Introduction

As AI continues to evolve, so do the methods we use to understand and interpret visual data. Object detection, a critical component of computer vision, traditionally relies on models that require complex, multi-stage processes. These models often involve separate components for generating region proposals and classifying objects, which can be both time-consuming and computationally expensive.

DETR (Detection Transformer) marks a significant shift in this landscape. By applying the Transformer architecture—a model structure that has revolutionized natural language processing—DETR simplifies object detection into a single, end-to-end process. This approach not only reduces the complexity of the model but also enhances its performance, making it a valuable tool for real-world applications.

2. DETR Architecture

The DETR architecture combines a convolutional backbone with a Transformer model, enabling it to process images in a way that considers both the overall context and specific object details. The backbone, often a ResNet-50, extracts features from the image, while the Transformer handles the relationships between these features to identify objects and predict their locations.

What makes DETR particularly powerful is its ability to bypass traditional region proposal networks (RPNs). Instead, it directly predicts bounding boxes and class labels in a single forward pass, simplifying the entire detection process.

2.1 Convolutional Backbone

The convolutional backbone of DETR is typically a ResNet-50 model. This backbone is responsible for extracting rich features from the input image. It processes the image through several layers of convolutions, pooling, and normalization to produce a feature map, which is then fed into the Transformer.

2.2 Transformer Module

The Transformer in DETR is used to model the relationships between the features extracted by the backbone. It takes as input the flattened feature map, along with positional encodings, and outputs a set of predictions for each object in the image. These predictions include both the class of the object and the coordinates of its bounding box.

2.3 Object Queries and Positional Encodings

A unique aspect of DETR is its use of object queries, which are learned embeddings that represent the objects to be detected in the image. The model outputs a fixed number of predictions, corresponding to these object queries, even if there are fewer objects in the image. Positional encodings are added to the input features to help the Transformer keep track of spatial relationships.

3. Practical Demonstration

To fully appreciate DETR’s capabilities, let’s walk through a practical example where we load an image, preprocess it, and use the DETR model to detect objects. This demonstration showcases the ease of integrating DETR into a computer vision workflow.

3.1. Loading and Preprocessing the Image

First, we need to load an image and prepare it for analysis. Below is a simple example using Python and PIL (Python Imaging Library) to load an image from the COCO dataset.

from PIL import Image
import requests

# Load an image from the COCO dataset
url = 'https://images.unsplash.com/photo-1727324735243-de8c0997c169?q=80&w=2940&auto=format&fit=crop&ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D'
image = Image.open(requests.get(url, stream=True).raw)

3.2. Applying Image Transformations

The image must be transformed to match the input requirements of the DETR model. This includes resizing, normalizing, and converting the image into a tensor.

import torchvision.transforms as T

# Define the transformation
transform = T.Compose([
    T.Resize(800),
    T.ToTensor(),
    T.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
])

# Apply the transformation
image_tensor = transform(image).unsqueeze(0)

3.3. Loading the DETR Model

With the image prepped, the next step is to load the DETR model. This model, pre-trained on the COCO dataset, is ready to identify and classify objects in the image.

import torch
from torchvision.models.detection import detr_resnet50

# Load the pre-trained DETR model
model = detr_resnet50(pretrained=True)
model.eval()

3.4. Detecting Objects

Once the model is loaded, it’s time to pass the image through DETR and retrieve the bounding boxes and class predictions for the detected objects.

# Perform object detection
with torch.no_grad():
    outputs = model(image_tensor)

# Extract bounding boxes and labels
boxes = outputs[0]['boxes']
labels = outputs[0]['labels']
scores = outputs[0]['scores']

3.5. Visualizing the Results

Finally, we visualize the detected objects by drawing bounding boxes around them and adding labels that indicate the predicted class and confidence score.

import matplotlib.pyplot as plt
import matplotlib.patches as patches

# Define COCO class labels
COCO_CLASSES = ['N/A', 'person', 'bicycle', 'car', 'motorcycle', ...]

# Plot the image with bounding boxes
fig, ax = plt.subplots(1, figsize=(12,9))
ax.imshow(image)

# Add bounding boxes and labels
for i in range(len(boxes)):
    box = boxes[i]
    label = COCO_CLASSES[labels[i]]
    score = scores[i]
    if score > 0.7:  # Show only high-confidence predictions
        rect = patches.Rectangle((box[0], box[1]), box[2]-box[0], box[3]-box[1],
                                 linewidth=2, edgecolor='r', facecolor='none')
        ax.add_patch(rect)
        plt.text(box[0], box[1] - 10, f'{label}: {score:.2f}', color='white',
                 fontsize=12, backgroundcolor="black")

plt.axis('off')
plt.show()

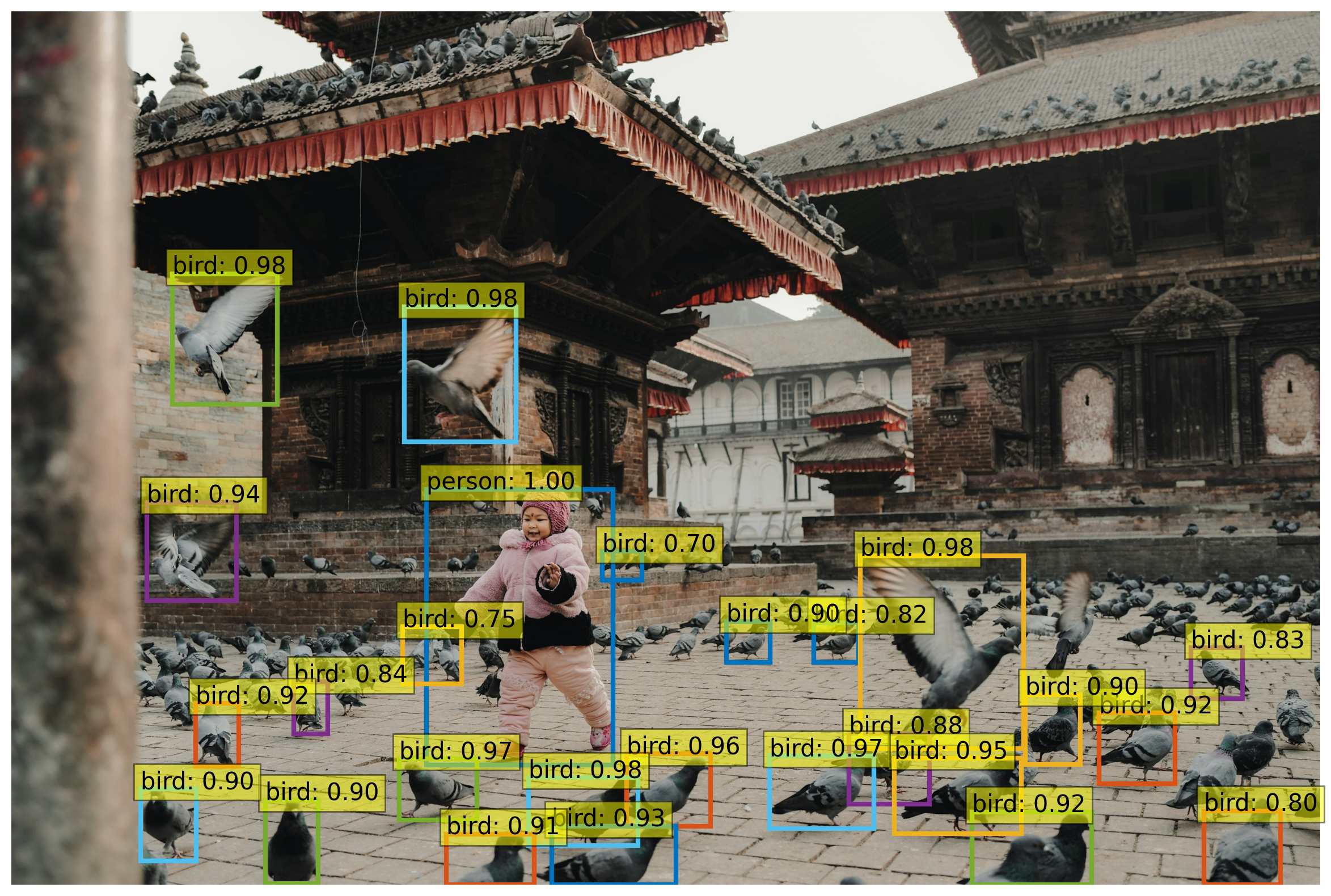

3.6. Result

You can test yourself in given notebook

https://colab.research.google.com/drive/1hqLNXI-meBfJN_b7XRQmb0MNoZG63LiD?usp=sharing

4. Conclusion

DETR represents a major advancement in object detection, providing a simpler and more effective alternative to traditional models. By integrating the power of Transformers into the object detection pipeline, DETR eliminates the need for complex region proposal networks, enabling faster and more accurate detections.

At FRACTZ, we specialize in applying cutting-edge AI technologies like DETR to solve real-world problems. Whether you’re looking to enhance security systems, automate image analysis, or improve any other application that relies on visual data, our expertise in AI can help you achieve your goals.
