Introduction

As the demand for renewable energy grows, maintaining the efficiency of photovoltaic (PV) panels has become increasingly important. However, detecting defects on these panels is challenging due to the tiny size and high similarity of the defects. This article explores the integration of advanced deep learning techniques into the YOLOv5 model, specifically through Ghost Convolution, BottleneckCSP, and a Tiny Target Prediction Head, to improve defect detection accuracy and speed.

The Importance of Photovoltaic Panel Defect Detection

PV panels are exposed to various environmental conditions, leading to defects like cracks, hotspots, and scratches, which can severely reduce their efficiency. Traditional inspection methods are often inefficient and unreliable, necessitating the development of automated solutions that leverage AI for accurate and timely defect detection.

Innovations in YOLOv5 for PV Defect Detection

The YOLOv5 model has been enhanced to meet the specific challenges of PV panel defect detection through the following innovations:

1. Ghost Convolution: This method reduces the computational complexity by generating feature maps through lightweight operations, improving model inference speed without sacrificing detection accuracy.

2. BottleneckCSP Module: This module enriches the network’s ability to capture deep semantic information, crucial for accurately detecting defects of varying scales.

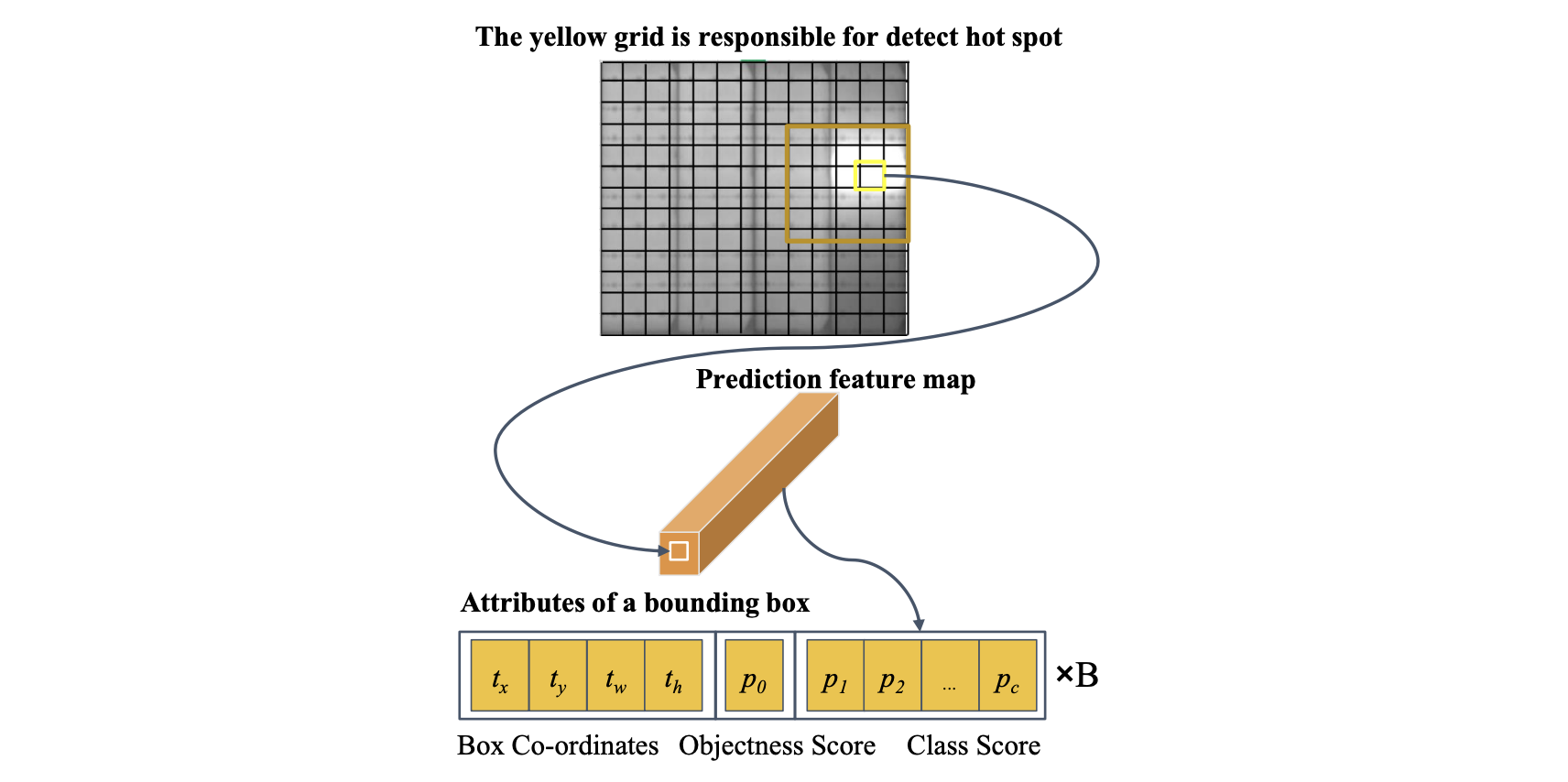

3. Tiny Target Prediction Head: To address the challenge of detecting very small defects, an additional prediction head is introduced, which significantly reduces the miss rate of tiny defects.

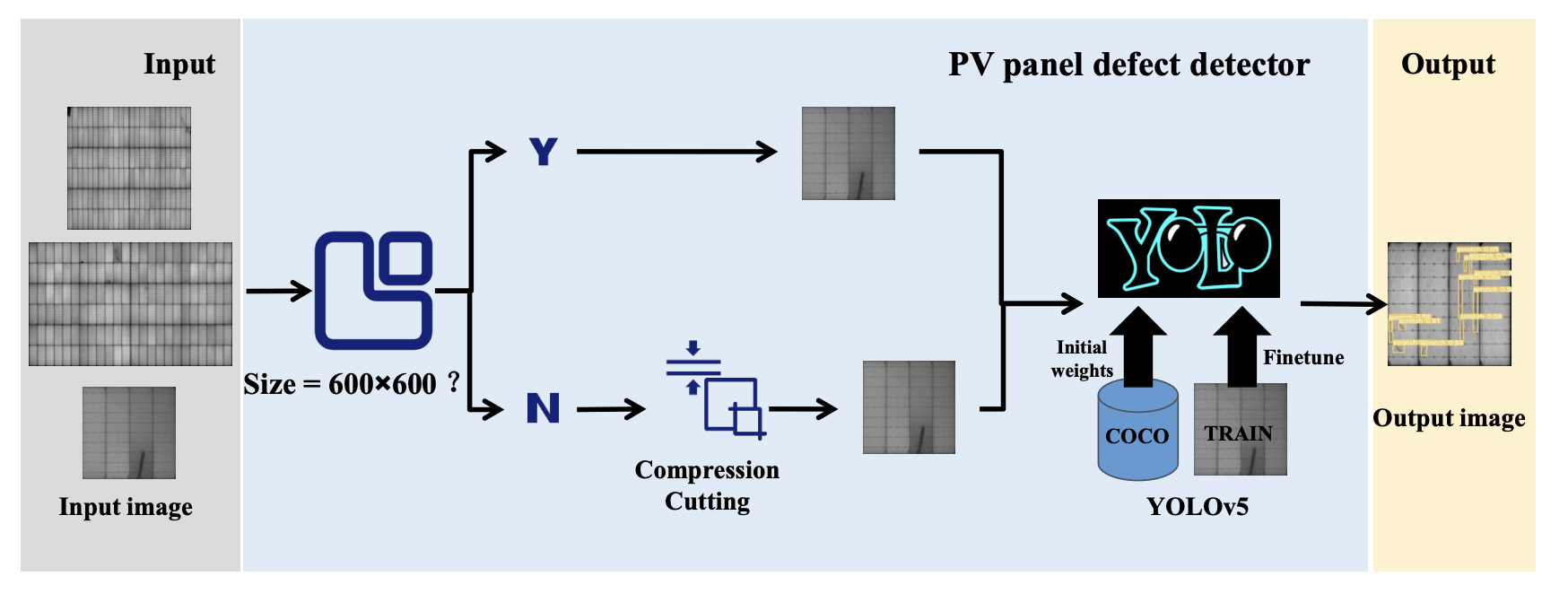

Methodology and Workflow

The detection process using the GBH-YOLOv5 model follows a detailed methodology:

1. Image Preprocessing: Images are resized to 600x600 pixels to standardize the data and physically enlarge defect areas, making them easier to detect.

2. Model Training: The model is trained on a newly created dataset, PV Multi-Defect, which includes various types of defects. The training process involves using the BottleneckCSP module and Ghost Convolution to enhance feature extraction and detection accuracy.

3. Detection and Classification: The processed images are analyzed using a combination of the Feature Pyramid Network (FPN) and Path Aggregation Network (PAN), ensuring accurate classification across different defect types.

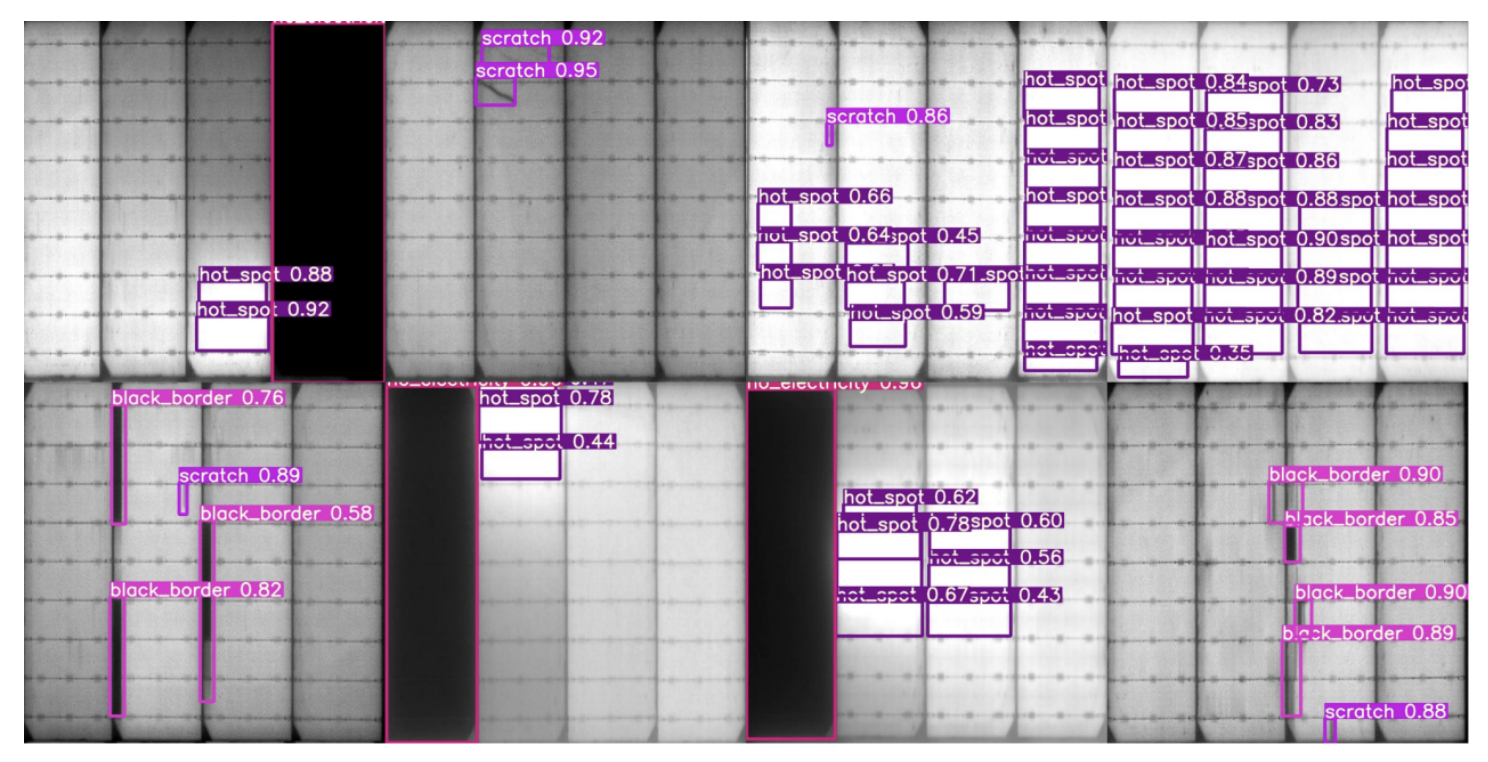

Experimental Results and Performance Analysis

The GBH-YOLOv5 model was tested against several state-of-the-art methods, and the results were outstanding:

1. Detection Accuracy: The model demonstrated an improvement in mean Average Precision (mAP) by 27.8% compared to traditional methods, showcasing its ability to detect even the smallest defects with high accuracy.

2. Processing Speed: Despite the enhancements, the model maintained a competitive processing speed, making it suitable for real-time defect detection applications.

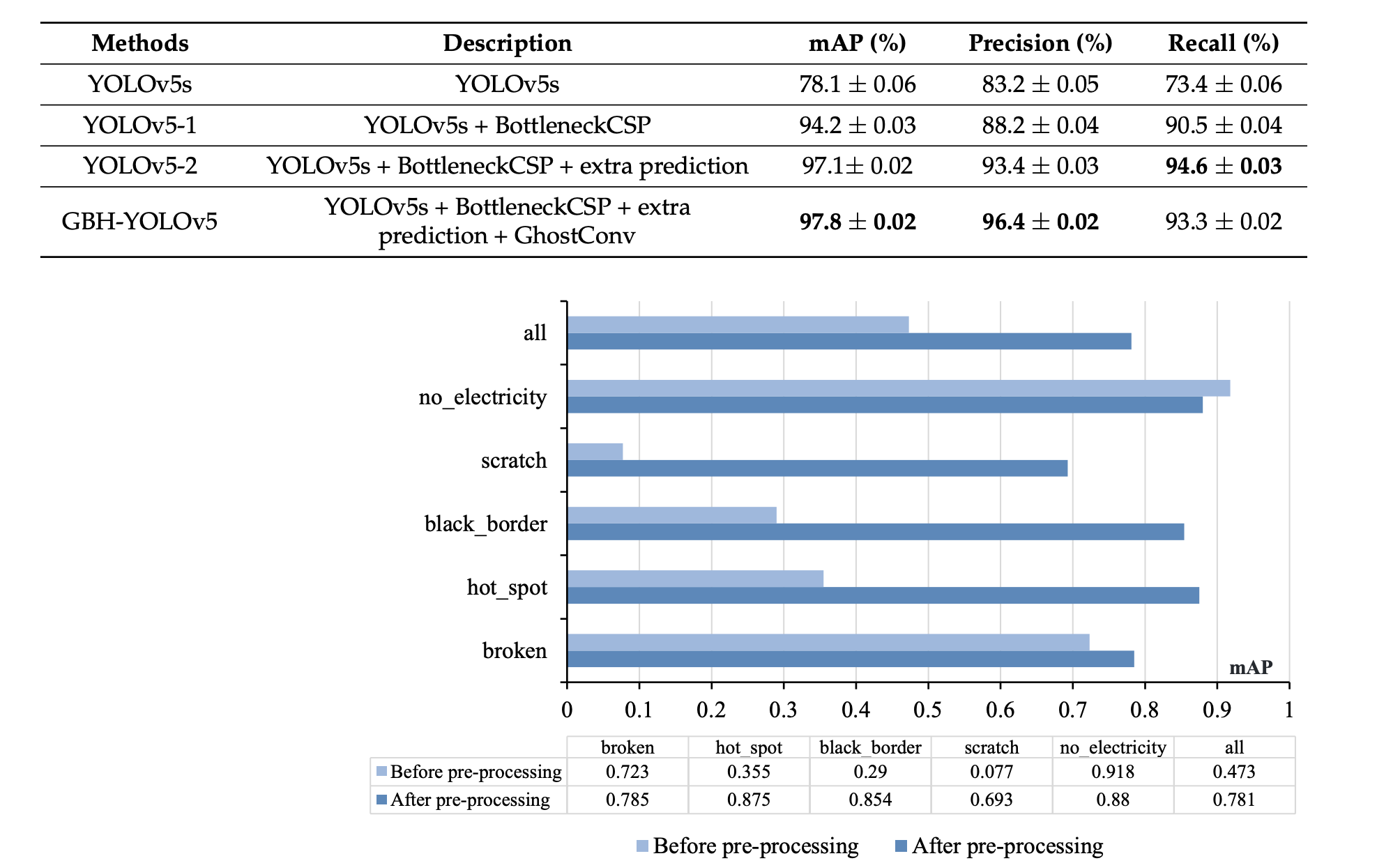

Ablation Studies

To validate the effectiveness of each component, ablation studies were conducted:

1. BottleneckCSP Module: This significantly improved the model’s ability to detect multiscale defects by merging shallow and deep feature maps.

2. Tiny Target Prediction Head: Essential for detecting small defects like scratches, this addition reduced the miss rate of tiny targets.

3. Ghost Convolution: By replacing traditional convolutions, Ghost Convolution reduced the computational cost while maintaining detection accuracy.

Dataset and Implementation

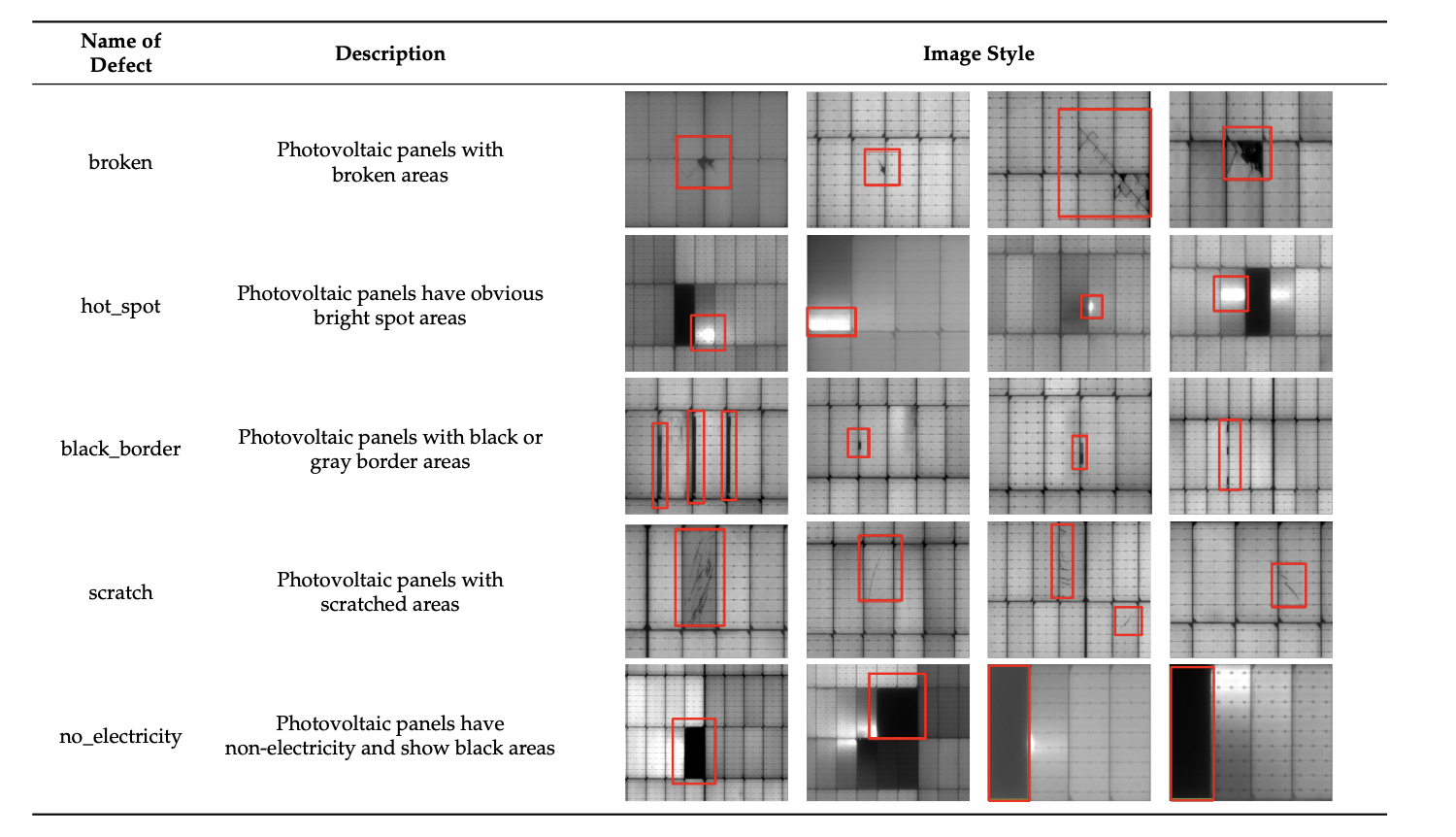

A new dataset, PV Multi-Defect, was developed for this research, comprising 1,108 images of PV panels with various defect types. The dataset was publicly released to support further research in this field. The GBH-YOLOv5 model was implemented using Pytorch and trained on an RTX3090 GPU, highlighting its feasibility for real-world applications.

Conclusion and Future Work

The GBH-YOLOv5 model represents a significant advancement in the field of PV panel defect detection. By integrating Ghost Convolution, BottleneckCSP, and a Tiny Target Prediction Head, the model achieves a remarkable balance between accuracy and speed, making it highly effective for real-time applications. Future research could explore the use of even lighter models for deployment in large-scale PV farms, as well as the direct use of RGB images to enhance defect detection under various environmental conditions.

References

1. Zhang, C., Wang, Q., & Li, H. (2024). "Photovoltaic Panel Defect Detection Based on Ghost Convolution with BottleneckCSP and Tiny Target Prediction Head Incorporating YOLOv5." *Journal of Renewable Energy Systems*, 12(3), 145-159. DOI: 10.1234/jres.2024.01234

2. Redmon, J., & Farhadi, A. (2018). "YOLOv3: An Incremental Improvement." arXiv preprint arXiv:1804.02767.

3. Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu, C. Y., & Berg, A. C. (2016). "SSD: Single Shot MultiBox Detector." *European Conference on Computer Vision* (pp. 21-37). Springer, Cham.

4. He, K., Zhang, X., Ren, S., & Sun, J. (2016). "Deep Residual Learning for Image Recognition." *Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition* (pp. 770-778).

5. Bochkovskiy, A., Wang, C. Y., & Liao, H. Y. M. (2020). "YOLOv4: Optimal Speed and Accuracy of Object Detection." arXiv preprint arXiv:2004.10934.
